Manage Airflow for Maximum Efficiency
These panels significantly improve cooling efficiency by creating a secure thermal barrier. This barrier prevents hot exhaust air from mixing with cold intake air, which optimizes airflow and reduces energy consumption.
This system provides both security and accessibility. The panels are designed for regulatory compliance and safety while still allowing easy access to essential cabling behind containment areas. This supports scalable infrastructure without sacrificing operational needs.
The system is highly adaptable to various facility configurations. It accommodates uneven server rows, missing cabinets, and overhead fire suppression systems, ensuring comprehensive containment.
Product Options
If you are interested in the products below, contact us for more information.

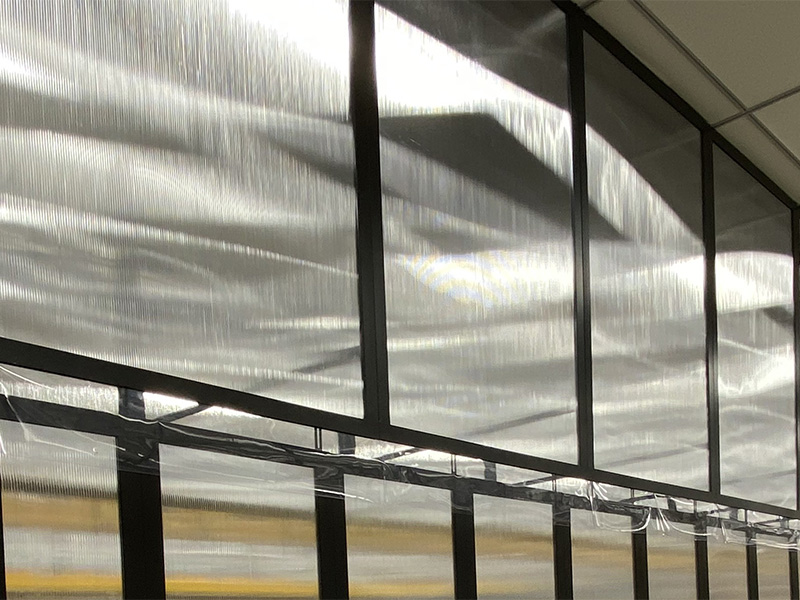

Lite Frame Vertical Aisle Containment Panels
Lite Frame Vertical Aisle Containment Panels provide an efficient solution for controlling vertical airflow in containment settings, featuring solid fixed partitions to seal airflow in hot or cold aisles within server rows.
-
Key Features
- Multiple panel insert options to meet budget, function, or fire-rating specs
- Panels framed by Cool Shield™ channel for high rigidity and seal
- Solutions for mounting to strut, channel, beams, ceiling grid, cabinets, or floor
- Clear panels for high light transmission
- Pre-assembled at factory to minimize installation time
-
Specifications
- UL 94, ASTM E 84 Class 1, and FM Global fire ratings available
- Channel features threaded and slotted slides for maximum flexibility
- Rubberized gasket seals against cabinet tops, ceilings, and between panels
- Lightweight extrusion — only 0.40 lbs. per linear foot
- Containment panel system can seal more than 98% of airflow

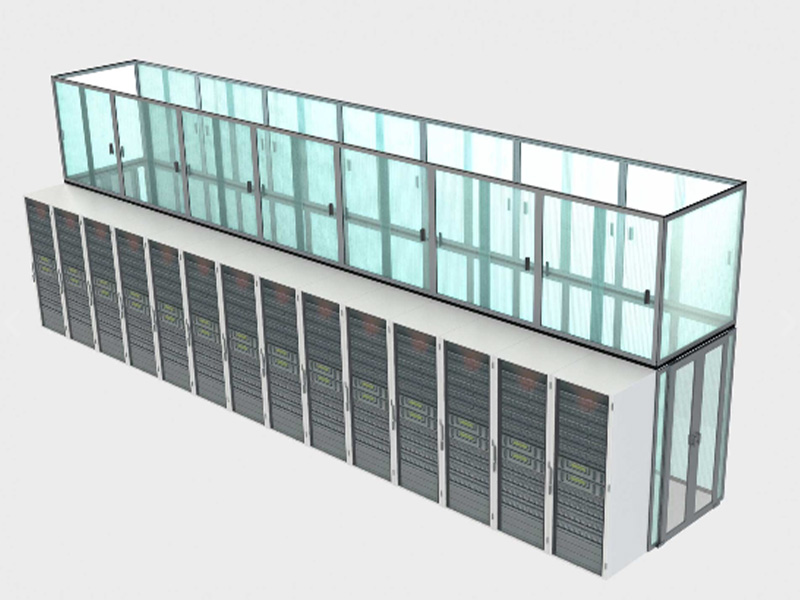

Dual Frame Sliding Panels
Dual Frame Sliding Panels provide exceptional sealing from server cabinets to the ceiling while offering versatile fixed or sliding options for easy access to cables and power busways.
-
Key Features
- Integrated double track system allows for one or two panels to be framed
- Overlap panels create a slide feature for access to data cables or power cords
- Optional handles allow for easy sliding action
- Integrated threaded and slotted channels for numerous sealing and mounting options
-
Specifications
- Panel inserts with UL 94, ASTM E 84 Class A and FM Global fire ratings available upon request
- Panels are pre-assembled in factory with desired brush and/or gasket options
- Rubber, foam and brushes fit into slots on all four sides for maximum seal
- Available with anodized (clear, black) or painted finish

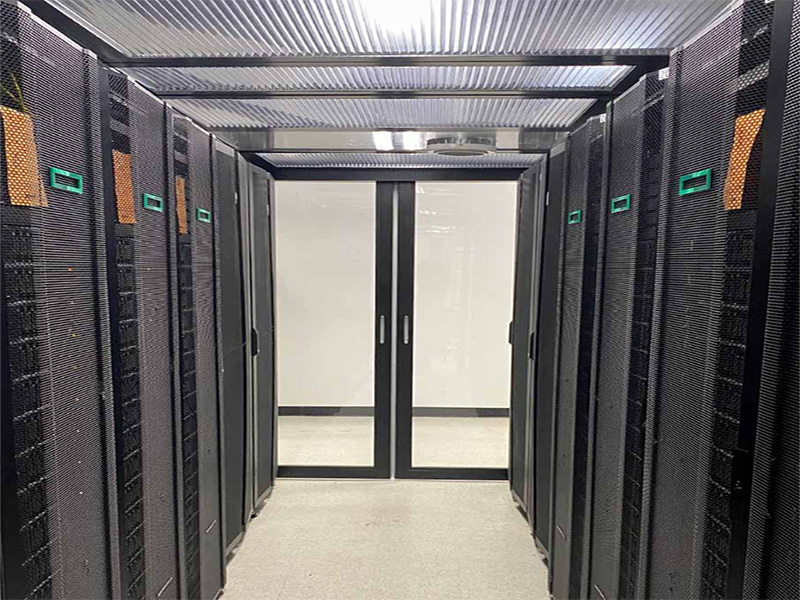

Thermal Drop Away Ceiling Panels
Thermal Drop Away Ceiling Panels, UL listed and lightweight, are designed to fall away before fire suppression release, making them ideal for use beneath fire suppression heads in contained areas.
-
Key Features
- Clear lightweight panels allow for light pass through
- Framed panels can be lifted off to access above contained area
- Panels designed to disintegrate above 135 degrees
- Material meets NFPA 75 fire rating requirements
- Framed panels can be pre-installed for fast installation
-
Specifications
- UL listed and FM Approved for installation beneath fire sprinklers
- Class A fire rated ASTM E84-11a
- Weight: 0.75 lbs
- Color: clear. Also available: white, sand, latte, merlot, black
- Material: Recyclable, 0.013″ thick rigid vinyl

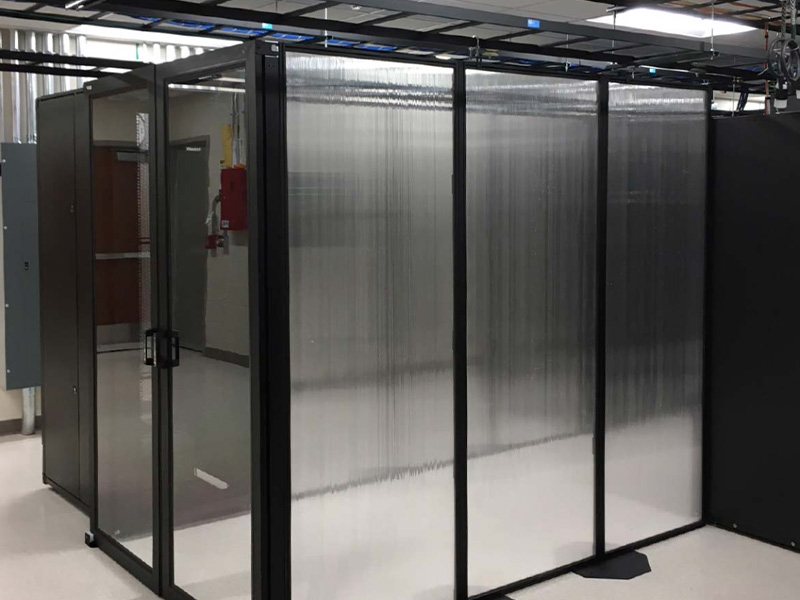

Framed Filler Panels
Framed filler panels fill gaps in server rows to allow full containment of aisles which have missing cabinets, uneven rows, columns or other openings.
-
Key Features
- Seals gaps in server rows to maintain proper containment
- Panels framed by Cool Shield™ channel for high rigidity and seal
- Custom sized and pre-assembled for quick on-site installation
- Clear panels for high light transmission
- Lightweight and cost-effective
-
Specifications
- 2” x ½” aluminum frame provides high rigidity and durability
- Standard plastic inserts meet ASTM E84 Class A rating. FM 4910 panels available upon request
- Rubberized gasket seals against cabinet tops, ceilings and between panels
- Panel frames less than ½ lb. per linear foot
- Standard colors are black and silver. Custom colors available
