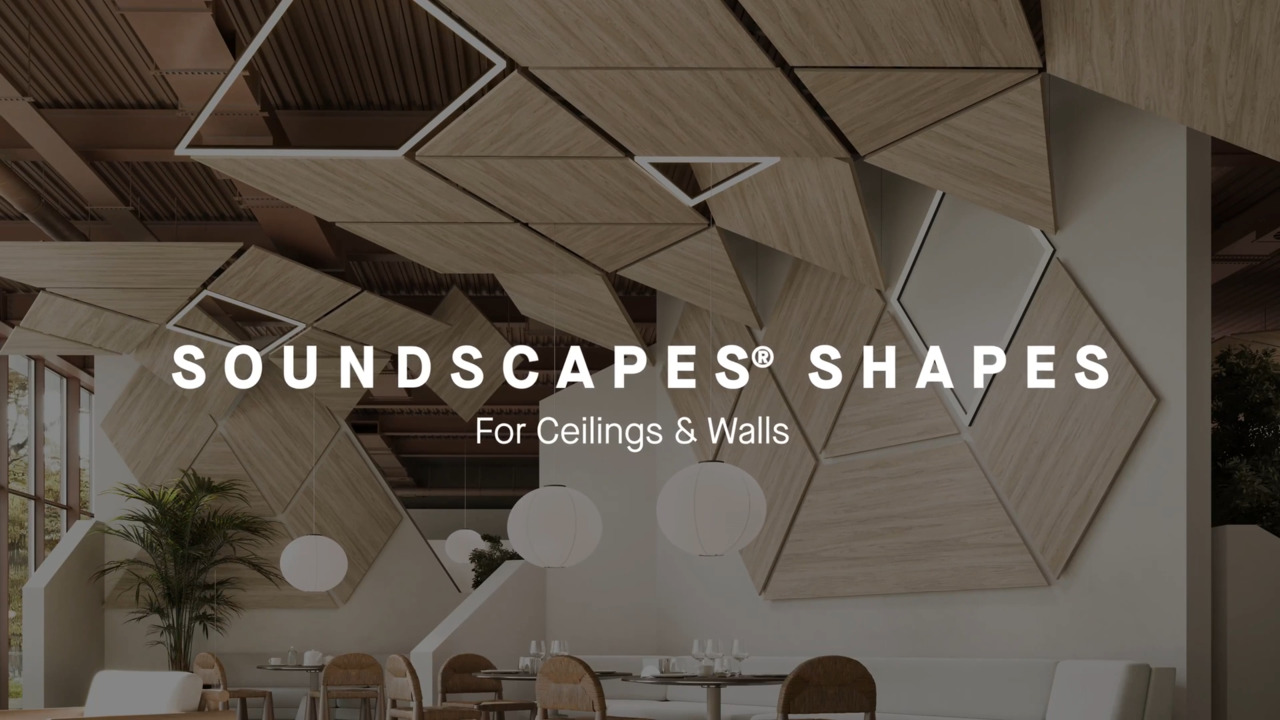

SOUNDSCAPES Shapes

Deliver acoustics in playful configurations with angles, layers, shapes, sizes, and finishes with installation versatility.

Key Features & Performance

  • Now available in 4 standard Wood Looks and 15 colors inspired by nature
  • Available in 9 standard shapes including triangles, trapezoids, and parallelograms
  • Aesthetically define spaces with excellent sound absorption up to 1.15 NRC
  • Quick to install from the deck, drywall, suspension system, or on a wall
  • CLEANASSURE family of products – includes disinfectable panels, suspension systems, and trim
  • Grouping Frame Kit provides superior rigidity, perfect alignment, minimizes hanging points, ensures consistent panel spacing, and is engineered for use in DEF Seismic zones
  • Select products included in the FAST134 program – ready to ship in 4 weeks or less
  • Adjustable to various heights and angles
  • ASTM E84 Class A Fire Performance
  • Mold- and mildew-resistant surface
  • Seismic-tested
  • Custom panel options available; 360º panel finishing capability
Material
Materials
Fiberglass
Acoustics
Sound Absorption (NRC)

A measure for rating the overall sound absorption of a material when used in an enclosed architectural space where sound is reflected at many angles of incidence. A ceiling system with an NRC < 0.50 is low performance, an NRC > 0.70 is high performance.

Up to 1.15
Fire
Fire Performance
Class A
Light
Light Reflectance

A high light reflective ceiling – LR 0.83 or greater, per ASTM E1477-98 as referred to in ASTM E1264-98 – makes lighting systems, especially indirect lighting, more effective while further reducing energy costs and consumption. LR values apply to White panels only.

88%
Anti-Microbial
Mold/Mildew Resistance

Ceiling panels with BIOBLOCK performance resist the growth of mold and mildew on the panel surface.
Ceiling panels with BIOBLOCK Plus performance resist the growth of odor and stain-producing bacteria as well as mold and mildew on the ceiling panel surface.

BIOBLOCK
Durability
Soil Resistance

Excellent resistance to dirt and/or grease for lasting value and performance.

Impact Resistance

Surface impact based on the Striking Ball Impact Test, modified ASTM D1037 procedure.

Washability

Offers superior wash resistance without compromising panel finish integrity, using a washability tester as per ATSM D4828.

Disinfectability
Fog

May be fogged following CDC recommendations using EPA-approved disinfectant ​cleaners per Armstrong Cleaning & Disinfecting Guidelines​

Spray

May be sprayed following CDC recommendations using EPA disinfectant​ cleaners per Armstrong Cleaning & Disinfecting Guidelines​

Special Applications
Exposed Structure
Library
Made In U.S.A. Of Domestic and Global Content
Yes

Get the acoustics right in any space!

Request a complimentary Custom Acoustical Report for your next project and receive a detailed, customized report that will ensure you have the right ceiling to reduce noise, improve speech intelligibility, and/or meet your speech privacy needs.

Order a sample of this product and we'll ship to your door – free.
Complimentary ceiling design & pre-construction service.
Sustainability Profile
Up to
55%
Recycled Content
LEED  •  WELL  •  Living Building Challenge
Recyclable/Extended Producer Responsibility
Recycled Content
Energy Management
Sourcing of Raw Materials
Construction Waste
Material Ingredient Reporting
Regional Materials
Location Dependent
Low emitting/materials
Design for Flexibility
Lighting Quality
EPD
Acoustics
Biobased Materials
