CALLA TEMPLOK

Smooth texture mineral fiber ceiling combines exceptional acoustical performance, energy savings and enhanced thermal comfort using advanced Phase Change Material (PCM) technology.
Video Player is loading.
Current Time 0:00
Duration 0:00
Loaded: 0%
Stream Type LIVE
Remaining Time 0:00

1x
    • Chapters
    • descriptions off, selected
    • captions off, selected

      Key Features & Performance

      Total Acoustics
      Made In U.S.A. Of Domestic and Global Content
      Buy America, Build America Act
      Energy Saving Ceilings
      • Reduce building HVAC energy costs and consumption up to 15%* with CALLA TEMPLOK ceiling panels
      • Enhance thermal comfort for occupants using advanced Phase Change Material (PCM) technology
      • Get total noise control and design flexibility with TOTAL ACOUSTICS ceiling panels: NRC + CAC = TOTAL ACOUSTICS performance
      • Excellent combination of acoustical performance; NRC 0.85, and CAC 39
      • CLEANASSURE family of products – includes disinfectable panels, suspension systems, and trim
      • Mold- and mildew-resistant surface
      • USDA Certified Biobased Product – 91%
      • Washable, Scratch-resistant, Soil-resistant
      • Compatible with the TECHZONE Ceiling System
      • Product can be recycled through the Armstrong Ceilings Recycling Program
      • 30-Year Limited System Warranty against visible sag, mold, and mildew

        * Measured cooling energy savings in lab test. Results may vary. See TEMPLOK Technical Guide for details.
      Material
      Materials
      Mineral Fiber
      Acoustics
      Sound Absorption (NRC)

      A measure for rating the overall sound absorption of a material when used in an enclosed architectural space where sound is reflected at many angles of incidence. A ceiling system with an NRC < 0.50 is low performance, an NRC > 0.70 is high performance.

      0.85
      Sound Blocking (CAC)

      A measure for rating the performance of a ceiling system as a barrier to airborne sound transmission through a common plenum between adjacent closed spaces. A ceiling system with a CAC < 25 is considered low performance, whereas one with CAC of 35 or higher is high performance.

      39
      Fire
      Fire Performance
      Class A (25/450)
      Light
      Light Reflectance

      A high light reflective ceiling – LR 0.83 or greater, per ASTM E1477-98 as referred to in ASTM E1264-98 – makes lighting systems, especially indirect lighting, more effective while further reducing energy costs and consumption. LR values apply to White panels only.

      85%
      Anti-Microbial
      Mold/Mildew Resistance

      Ceiling panels with BIOBLOCK performance resist the growth of mold and mildew on the panel surface.
      Ceiling panels with BIOBLOCK Plus performance resist the growth of odor and stain-producing bacteria as well as mold and mildew on the ceiling panel surface.

      BIOBLOCK
      Humidity
      Sag/Humidity Resistance

      Ceiling panels maintain humidity and sag resistance.

      HUMIGUARD Plus
      Durability
      Soil Resistance

      Excellent resistance to dirt and/or grease for lasting value and performance.

      Impact Resistance

      Surface impact based on the Striking Ball Impact Test, modified ASTM D1037 procedure.

      Scratch Resistance

      Excellent resistance to surface scratching, scuffing or chipping as per Hess Rake Test.

      Washability

      Offers superior wash resistance without compromising panel finish integrity, using a washability tester as per ATSM D4828.

      Scrubbability

      Withstands up to 150 scrub cycles using a scrubbability tester as per ATSM 02486.

      Disinfectability
      Fog

      May be fogged following CDC recommendations using EPA-approved disinfectant ​cleaners per Armstrong Cleaning & Disinfecting Guidelines​

      Special Applications
      Library
      Music / Language Room
      Made In U.S.A. Of Domestic and Global Content
      Yes

      New Energy Saving Ceilings

      Save energy and contribute to sustainable, healthy and resilient spaces. Learn more about TEMPLOK Ceiling benefits including energy saving performance. Request a complimentary Space Audit from our expert team.

      The ideal combination of sound absorption & sound blocking.
      Complimentary ceiling design & pre-construction service.
      Sustainability Profile
      Sustainable Product Search Tool
      Recyclable via the Armstrong Ceilings Recycling Program
      LEED  •  WELL  •  Living Building Challenge
      Recyclable/Extended Producer Responsibility
      Recycled Content
      Energy Management
      Sourcing of Raw Materials
      Construction Waste
      Material Ingredient Reporting
      Regional Materials
      Location Dependent
      Low emitting/materials
      Design for Flexibility
      Lighting Quality
      EPD
      Acoustics
      Biobased Materials

      Configure an Item

      Custom color selected. Indicate color when specifying.
      Item Shown: 2824TEMP in White (WH)
      Multiple Items Exist
      Lead Time: No Requirement
      (No Requirement. Details.)
      Color: White (WH)
      TEMPLOK panels cannot be cut. Use related CALLA Tegular or Lay-In item for borders and cutting needs.
      Shape: Rectangle
      NOTE: Shape drawings are not to scale.
      Rectangle
      Rectangle
      Panel Size (Width x Length) : 24" x 24"
      24" x 24"
      Thickness:
      1-1/4"
      Acoustics: 0.85 NRC / 39 CAC

      Let us help you select the right acoustics for your project.

      • NRC (Noise Reduction Coefficient)
      • CAC (Ceiling Attenuation Class)
      • STC (Sound Transmission Class)
      • NIC (Noise Isolation Class)
      • AC (Articulation Class)
      0.85 NRC / 39 CACNo Data
      Available Infill Panels (specified separately)
      Acoustical values achieved with infill panel. See data page for details.

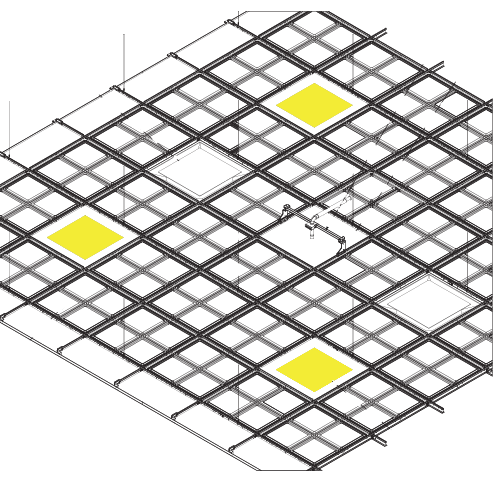

      Installation Recommendation

      TEMPLOK panels cannot be cut. Use related CALLA Tegular or Lay-In item for borders and cutting needs.
