Key Features & Performance
- Ideal combination of a finished ceiling system with a structural solution to suspend mid-span loads of up to 1,090 lbs. at L/360 (up to 1,800 lbs. for static point loads)
- Allows for longer spans (6’ and 8') while also providing greater load-carrying capacity
- 6' spacing allows for direct attachment to steel joists or precast concrete tees
- Spanning 6' or more eliminates the need for slotted strut channel at deck/roof level and creates more space for critical MEP components
- Easy integration into a conventional grid system using AXTBC clip and DYNAMAX PLUS boss channels

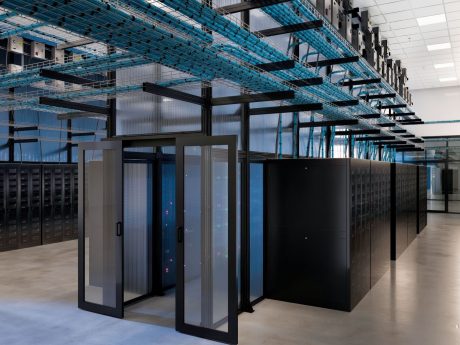

- A structural data center solution for suspending cable trays, equipment, partitions and hot and cold aisle containment barriers
- Armstrong ceiling panels options specifically sized for DYNAMAX PLUS
- Factory gasketed ULTIMA AIRASSURE for DYNAMAX PLUS panels reduce air leakage and save an average energy savings of $.40/SF annually
- Lighting, diffuser, and air containment options are available from solutions partners
- Available in 24" x 24", 24" x 48" and 48" x 48" suspension system layouts
- Fully accessible system allows for future expansion and upgrades
- Cross tees not bearing any load are removable for plenum access without compromising the structural integrity of the system
- 10-year limited suspension system warranty; 30-year limited ceiling system warranty
- Installation Benefits:
- Factory cut notches on main beams for a faster and easier installation
- Non-progressive installation gives the ability to remove or replace a section of the system without the need to dismantle those components around it
- X-Brackets installed on DYNAMAX PLUS grid provide attachment points for 4' x 4' suspension from building structure
- Eliminate up to 1/2 of threaded rods/accessories utilized today for typical 4' hanging spans
Face
Face Dimensions
2"
Material
Materials
Aluminum
Duty
Duty Ratings
Heavy Duty
Sustainability Profile
Recyclable via the Armstrong Ceilings Recycling Program
Find a recycling center near you with Earth911
LEED • WELL • Living Building Challenge
Recyclable/Extended Producer Responsibility
|
Recycled Content
|
Energy Management
|
Sourcing of Raw Materials
|
Construction Waste
|
Material Ingredient Reporting
|
Regional Materials
Location Dependent
|
Low emitting/materials
|
Design for Flexibility
|
Lighting Quality
|
EPD
|
Acoustics
|
Biobased Materials
|
Colors & Options
Color shown may vary from actual product.
